Product Description
The structure tent has a clear span of 3-30 meters. Length can be expanded by 3m or 5m. The structured fabric tents are supported by rigid frames rather than poles, and they are designed to meet most weather conditions regarding wind, snow, cold, and heat. Raw materials for the framework are hard extruded aluminum alloy T6061 and double-coated PVC fabric for the roof cover & sidewall. Flame retardant to DIN4102 B1. Besides PVC sidewall, the glass wall, ABS hard wall, and sandwich wall are available.
Arcum tents can be built in a matter of days, capable of quickly and efficiently turning any outdoor space into an indoor venue, ideal for temporary or permanent use. Structure tents are widely used for a variety of outdoor temporary events such as trade shows, warehousing, storage, stage covering, and extra space for restaurants and venues, making them a good alternative solution for your temporary construction.

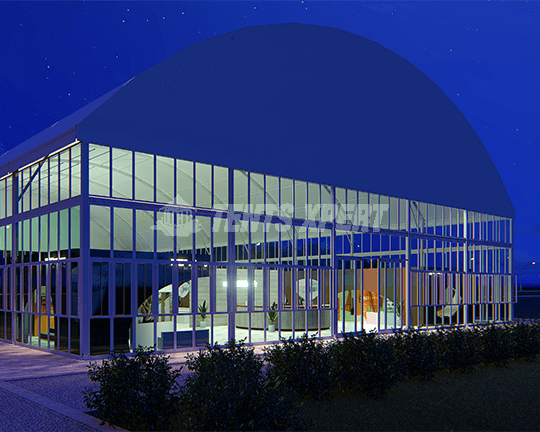

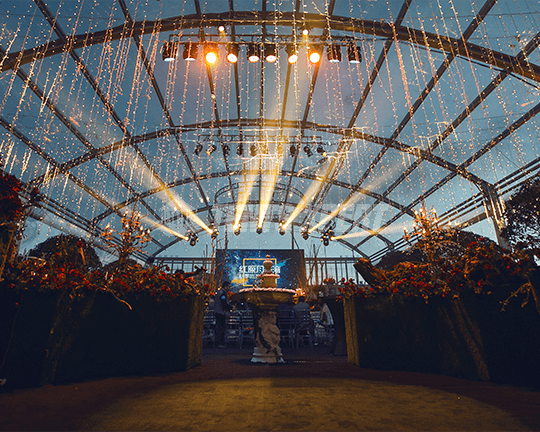

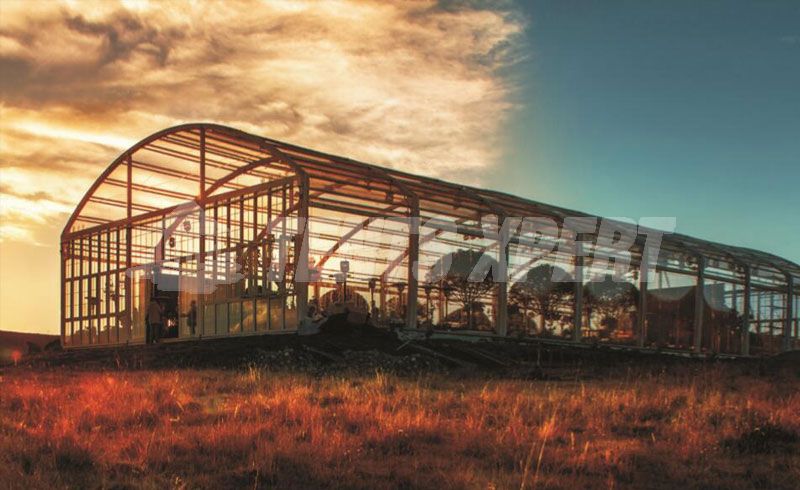

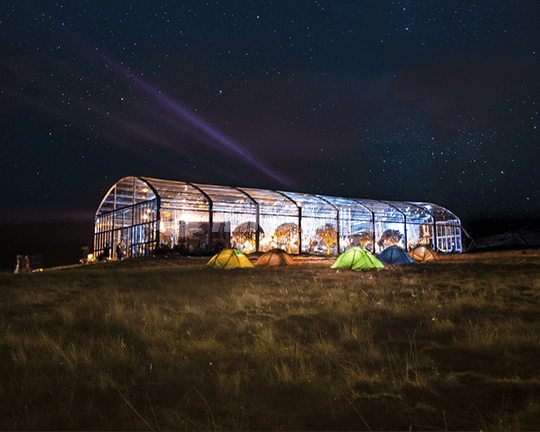

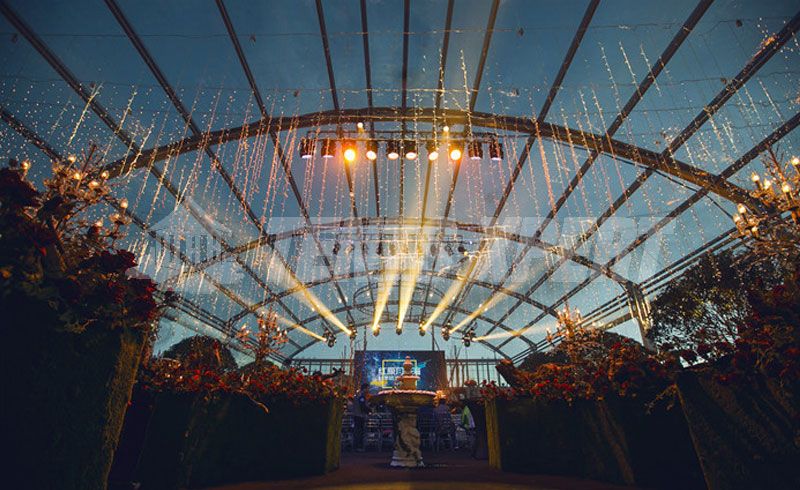

√ Music festival tent. Decorative frame with glass and enjoy the pleasure in the night.

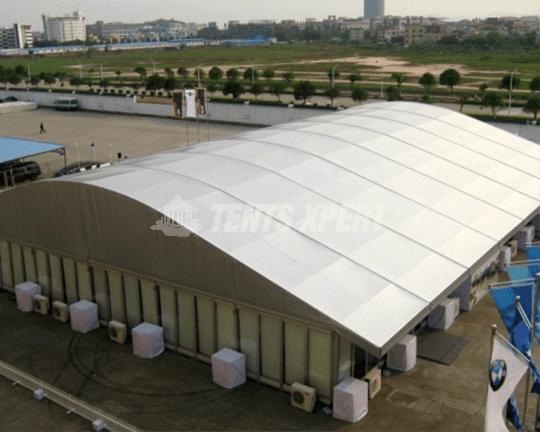

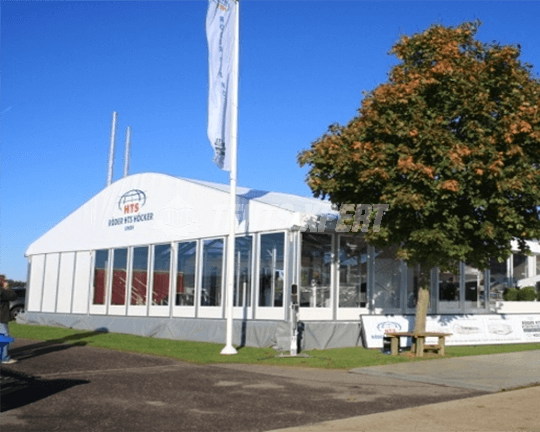

√ Large car show tent. Spacious interior space, flexible layout, allowing more cars to be displayed.

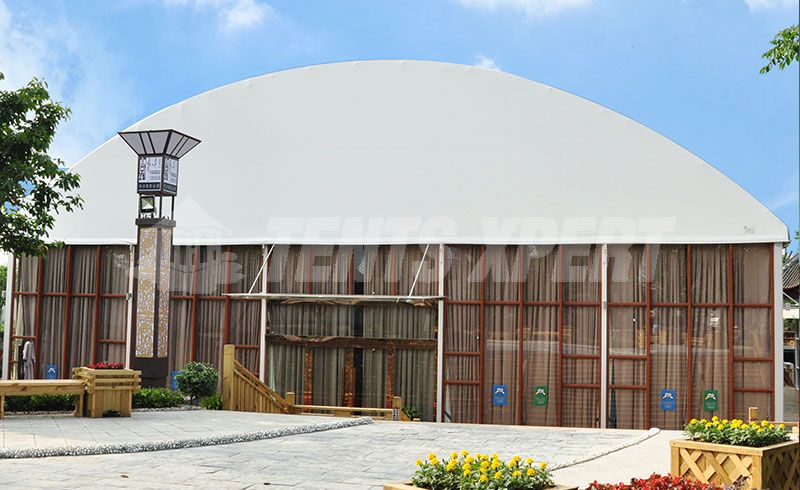

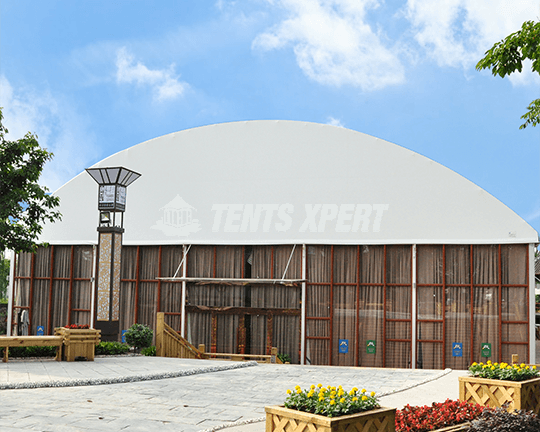

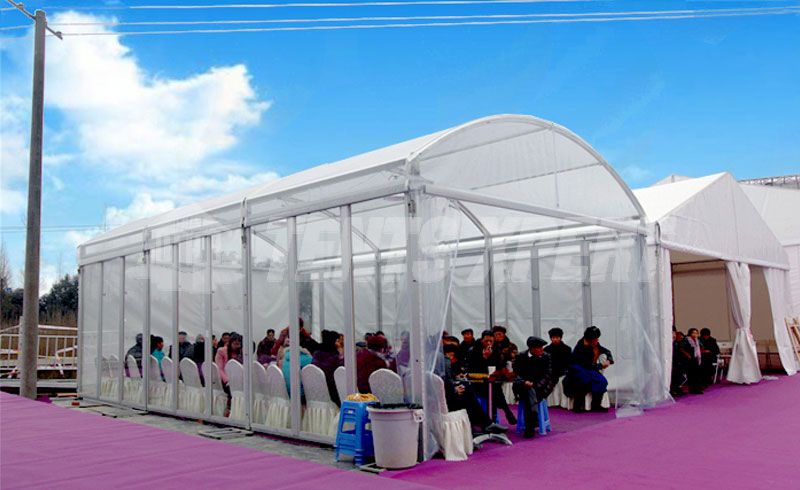

√ Commercial tent. Meet the requirements of hundreds of people attending the meeting at the same time.

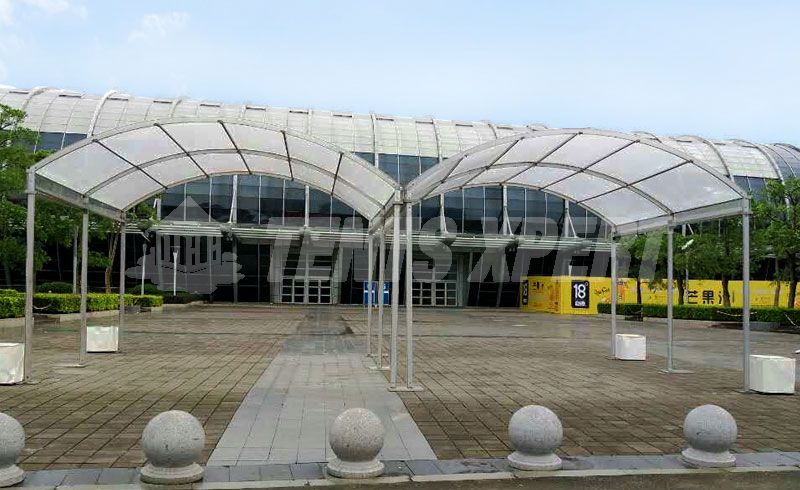

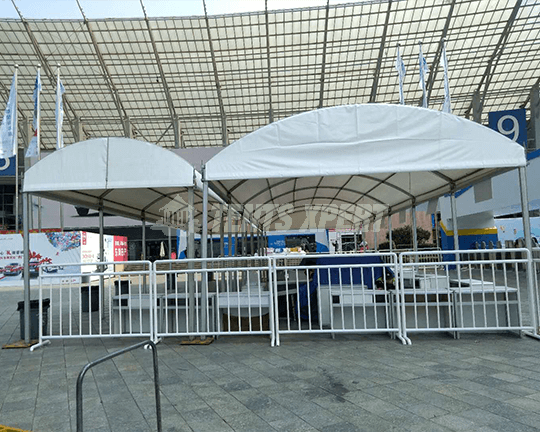

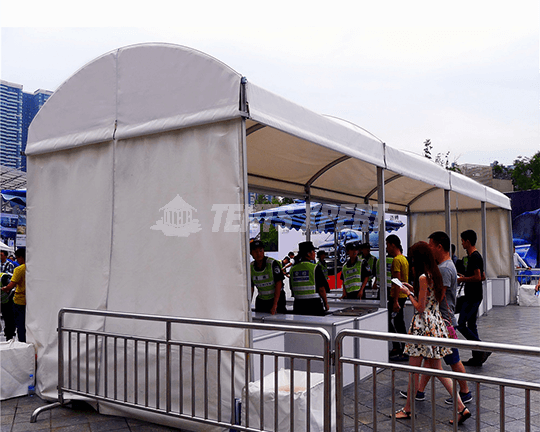

√ Temporary security checkpoint tent. It can shade sunlight and rain for the staff.

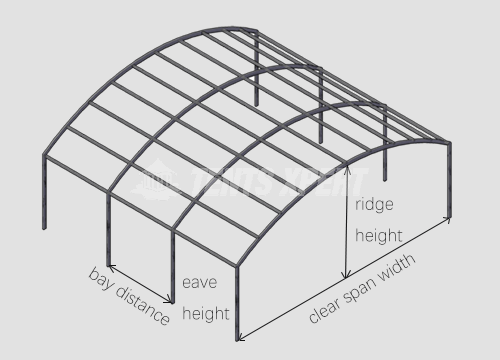

Span Width m / ft | Eave Height m / ft | Ridge Height m / ft | Bay Distance m / ft |
10 / 32.8 | 4 / 13.12 | 5.63 / 18.47 | 5 / 16.4 |
15 / 49.21 | 4 / 13.12 | 6.44 / 21.13 | 5 / 16.4 |
15 / 49.21 | 5 / 16.4 | 7.44 / 24.41 | 5 / 16.4 |
15 / 49.21 | 6 / 19.69 | 8.44 / 27.69 | 5 / 16.4 |
20 / 65.62 | 4 / 13.12 | 7.16 / 23.49 | 5 / 16.4 |
20 / 65.62 | 5 / 16.4 | 8.16 / 26.77 | 5 / 16.4 |
20 / 65.62 | 6 / 19.69 | 9.16 / 30.05 | 5 / 16.4 |
30 / 98.43 | 4 / 13.12 | 8.84 / 29 | 5 / 16.4 |
30 / 98.43 | 5 / 16.4 | 10.84 / 35.56 | 5 / 16.4 |
30 / 98.43 | 6 / 19.69 | 12.84 / 42.13 | 5 / 16.4 |
40 / 131.23 | 4 / 13.12 | 10.41 / 34.15 | 5 / 16.4 |
40 / 131.23 | 5 / 16.4 | 12.41 / 40.72 | 5 / 16.4 |
40 / 131.23 | 6 / 19.69 | 14.41 / 47.28 | 5 / 16.4 |

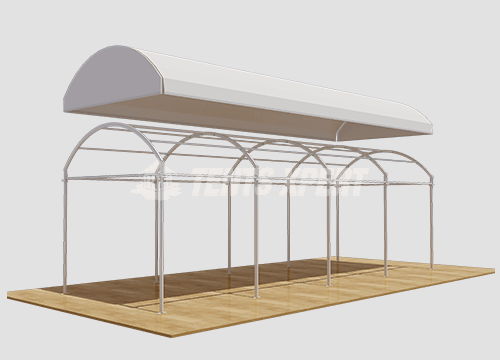

☆ Hard extruded aluminum alloy T6061/T6 (15~17HW)
☆ Easy to assemble and disassemble
☆ Few components and less space for storage
☆ Be installed without heavy machinery
☆ Compatible with other accessories
☆ 15-20 years lifespan
PVC Roof or glass roof
☆ Specification: 650~1100g/m2
☆ Flame Retardant: DIN 4102 B1 M2
☆ Wind Load: 88 km/h
☆ Snow Load: 35 kg/m2
☆ High strength and strong tension
☆ anti-mildew and anti-corrosion
☆ 10-15 years lifespan
PVC sidewall or glass sidewall
Flooring System | Curtain Lining | Weight Plate | Air Conditioning | Rain Gutter
